Description
Type Code MBS 3200 , Weight 0.170 Kg , – common PIN 2 , + supply PIN 1 , Accuracy (max.) ±FS 1More details

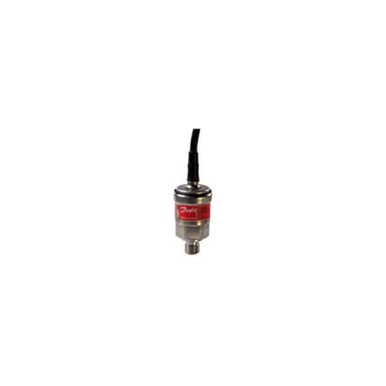

The compact high temperature pressure transmitter MBS 3200 is designed for use in almost all industrial applications, and offers a reliable pressure measurement, even under harsh environmental conditions. The flexible pressure transmitter programme covers 4-20 mA, 0-5 V, 1-5 V, 1-6 V and 0-10V output signal, absolute and gauge (relative) versions, measuring ranges from 0-1 to 0-600 bar and a wide range of pressure and electrical connections. Excellent vibration stability, robust construction, a high degree of EMC/EMI protection and a high operating temperature, equip the pressure transmitter to meet the most stringent industrial requirements. 4 – 20 mA, 0 – 5 V, 1 – 5 V, 1 – 6 V and 0 – 10 V output signal Operating temperature -40 to 125° C Measuring range 0 – 600 bar A wide range of pressure and electrical connections are available For use in severe industrial environments
| Type Code | MBS 3200 |
| Weight | 0.170 Kg |
| – common | PIN 2 |
| + supply | PIN 1 |
| Accuracy (max.) ±FS | 1,00 % |
| Accuracy (typ.) ±FS | 0,5 % |
| Adj. zero point/span | No |
| Ambient temp. | -40 – 100 °C |
| Ambient temp. | -40 – 212 °F |
| Approval | ATEX |
| Approval comments | ATEX Ex nA IIA T3 Gc |
| Compensated temp. range | 0 – 100 °C |
| Compensated temp. range | 32 – 212 °F |
| EAN no. | 5702423140619 |
| Electr. conn. type | Pg 9, EN 175301-803-A, Male and Female |
| Encl. | IP65 |
| Flush diaphr. | No |
| Intrins. safe | No |
| Medium temp. range | -40 – 125 °C |
| Medium temp. range | -40 – 257 °F |
| Non-linearity BFSL ±FS [%] | 0,20 % |
| Output sign. type | 4 – 20 mA |
| Overload press. max. | 8,0 bar |
| Pressure conn. HEX | 27,0 |
| Pressure conn. std. | EN 837 |
| Pressure conne. type | G – 1/4 Male |
| Pressure range | 0,00 – 4,00 bar |
| Press. unit ref. | Absolute |
| Pulse-snubber | No |
| Response time max. | 4 ms |
| Spec. key | MBS 3200-1621-1AB04-0 |
| Supply volt. | 8,20 – 34,00 V |
