Description

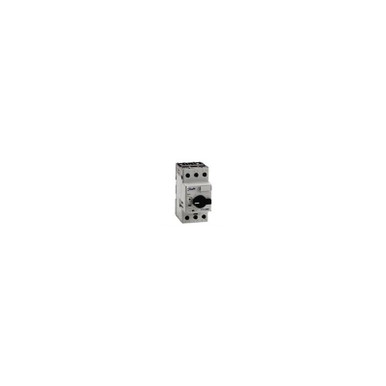

Type Code CTI 25M , Weight 0.263 Kg , Approval C UL US, CE, EAC More details
The CTI product range is modular, flexible and offers a large selection of clip-on auxiliary functions and accessories: Aux. contacts, alarm contacts, voltage- and undervoltage trips. Compact design Screw or DIN rail mounting Motor application Overload protection of motors (0.02-11 kW) Short-circuit protection Standard breaking capacity Setting range 0.1-25A Operation switch (manual motor starter) Isolation switch (with locking device) Emergency switch (with undervoltage trip) Indications: Test and reset functions ON or OFF Thermal and electromagnetic trip
| Type Code | CTI 25M |
| Weight | 0.263 Kg |
| Approval | C UL US, CE, EAC |
| Breaking cap. Ics, 380-415 V | 100 kA |
| Current range | 0,25 – 0,40 A |
| EAN no. | 5702423144853 |
| Function | Overload and short-c. protect |
| Max. load, AC-3 [kW] | 0,09 kW |
| Max. trip current | 5,2 A |
| Descript. | CIRCUIT BREAKER |
| Prod. Group | Contactors and motor starters |
| Prod. name | CIRCUIT BREAKER |
| UL approval file | E148460 |
| Used for | MOTORS |
