Description

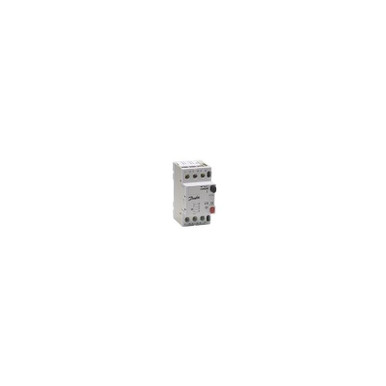

Type Code CTI 15 , Weight 0.308 Kg , Approval C UL US, CE, EAC More details
Circuit breakers / manual motor starters range is modular, flexible and offers a large selection of clip-on auxiliary functions and accessories: auxiliary contact blocks, shunt releases, connection terminal, bus bars and enclosures. Power ranges 0.09 – 7.5 Kw / 0.09 – 12.5 kW Short-circuit protection Operation switch (manual motor starter) Isolation switch (with locking device) Emergency stop switch ( with undervoltage trip) Indication functions: (On/Off) A large selection of clip-on auxiliary functions and accessories are available
| Type Code | CTI 15 |
| Weight | 0.308 Kg |
| Approval | C UL US, CE, EAC |
| Breaking cap. Ics, 380-415 V | 6 kA |
| Current range | 10,00 – 16,00 A |
| EAN no. | 5702423188109 |
| Function | Overload and short-c. protect |
| Max. load, AC-3 [kW] | 7,50 kW |
| Max. trip current | 176,0 A |
| Descript. | CIRCUIT BREAKER |
| Prod. Group | Contactors and motor starters |
| Prod. name | CIRCUIT BREAKER |
| UL approval file | E148460 |
| Used for | MOTORS |
