Description
Type Code EV220A , Weight 0.496 Kg , Actuator size 9 mm , Actuator size 0.35 in , Ambient temp. max. 50 °C More details

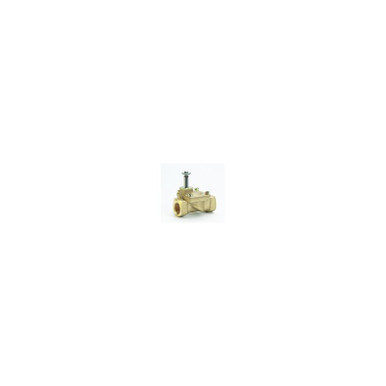

EV220A is a compact servo-operated 2/2-way solenoid valve program, especially designed for use in machines and equipment with limited space.
| Type Code | EV220A |
| Weight | 0.496 Kg |
| Actuator size | 9 mm |
| Actuator size | 0.35 in |
| Ambient temp. max. | 50 °C |
| Ambient temp. max. | 122 °F |
| Body mat. | Brass |
| Connection | G 1/2 |
| Conn. Int./Ext. | Internal |
| Conn. std. | ISO 228-1 |
| Cv value | 4,600 gpm US |
| Diff. pressure | 0,2 – 10 bar |
| Diff. pressure | 2,9 – 142,9 psi |
| EAN no. | 5702423106615 |
| Function | N C |
| Kv value | 4,000 m3/h |
| Max. Working Pressure | 50,0 bar |
| Max. Working Pressure | 715 psig |
| Medium temp. range | 0 – 100 °C |
| Medium temp. range | 32 – 210 °F |
| Number of ways | 2/2 |
| Operation | Servo-operated (diaphragm) |
| Orifice size | 14,00 mm |
| Orifice size | 4/16 in |
| Seal mat. | FKM |
| Type designation | Solenoid valve |
