Sale!

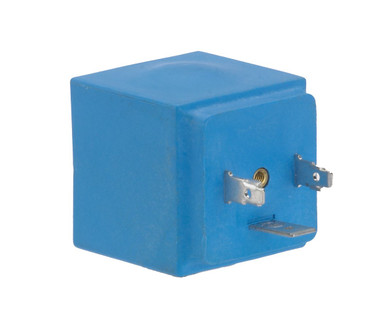

042N7602 Danfoss Solenoid coil, AS240CS

042N7602 Danfoss Solenoid coil, AS240CS

Original price was: $39.24.Current price is: $11.77.

SKU: 042N7602 Category: Tag:

Description

Product details

Gross weight 0.12 kg
Net weight 0.11 kg
EAN 5702428027380
Gross weight 0.12 kg
Net weight 0.11 kg
EAN 5702428027380



Actuator size 9 mm
Ambient temperature range [°C] [Max] 50 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 122 °F
Ambient temperature range [°F] [Min] -40 °F
Approval LLC CDC TYSK
Coil connection DIN Spade
Coil fastening Clip-on
Colour Blue
Compliance EN 60730-1
Electrical connection DIN Spade
Electrical connection size 6.3 mm x 0.8 mm
Electrical connection standard EN175301-803
Electrical connector 3 x spades
Enclosure rating IP IP00
Frequency [Hz] 50/60 Hz
Packing format Multi pack
Parts Program name EV220W
Power consumption 50Hz [VA] 13 VA
Power consumption 60Hz [VA] 10 VA
Power consumption [W] 50Hz 6.5 W
Power consumption [W] 60Hz 5 W
Product accessories Solenoid coil accessories
Product group Solenoid valves
Product name Solenoid coil
Quantity per packing format 24 pc
Rel. Humidity [% RH] [Max] 97 %
Rel. Humidity [% RH] [Min] 0 %
Rel. Humidity conditions Non-condensation
Serviceable No
Spare part number 042N7602
Supply voltage 50Hz Max [V] 240 V
Supply voltage 60Hz Max [V] 240 V
Supply voltage [V] a.c. 240 V
Supply voltage [V] AC 240 V
Type AS240CS
Type designation AS240CS
Actuator size 9 mm
Ambient temperature range [°C] [Max] 50 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 122 °F
Ambient temperature range [°F] [Min] -40 °F
Approval LLC CDC TYSK
Coil connection DIN Spade
Coil fastening Clip-on
Colour Blue
Compliance EN 60730-1
Electrical connection DIN Spade
Electrical connection size 6.3 mm x 0.8 mm
Electrical connection standard EN175301-803
Electrical connector 3 x spades
Enclosure rating IP IP00
Frequency [Hz] 50/60 Hz
Packing format Multi pack
Parts Program name EV220W
Power consumption 50Hz [VA] 13 VA
Power consumption 60Hz [VA] 10 VA
Power consumption [W] 50Hz 6.5 W
Power consumption [W] 60Hz 5 W
Product accessories Solenoid coil accessories
Product group Solenoid valves
Product name Solenoid coil
Quantity per packing format 24 pc
Rel. Humidity [% RH] [Max] 97 %
Rel. Humidity [% RH] [Min] 0 %
Rel. Humidity conditions Non-condensation
Serviceable No
Spare part number 042N7602
Supply voltage 50Hz Max [V] 240 V
Supply voltage 60Hz Max [V] 240 V
Supply voltage [V] a.c. 240 V
Supply voltage [V] AC 240 V
Type AS240CS
Type designation AS240CS

Product name: Solenoid coil, Type: AS240CS, Supply voltage [V] AC: 240, Enclosure rating IP: IP00, Coil connection: DIN Spade, Actuator size: 9 mm

Product details

Gross weight 0.12 kg
Net weight 0.11 kg
EAN 5702428027380
Gross weight 0.12 kg
Net weight 0.11 kg
EAN 5702428027380



Actuator size 9 mm
Ambient temperature range [°C] [Max] 50 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 122 °F
Ambient temperature range [°F] [Min] -40 °F
Approval LLC CDC TYSK
Coil connection DIN Spade
Coil fastening Clip-on
Colour Blue
Compliance EN 60730-1
Electrical connection DIN Spade
Electrical connection size 6.3 mm x 0.8 mm
Electrical connection standard EN175301-803
Electrical connector 3 x spades
Enclosure rating IP IP00
Frequency [Hz] 50/60 Hz
Packing format Multi pack
Parts Program name EV220W
Power consumption 50Hz [VA] 13 VA
Power consumption 60Hz [VA] 10 VA
Power consumption [W] 50Hz 6.5 W
Power consumption [W] 60Hz 5 W
Product accessories Solenoid coil accessories
Product group Solenoid valves
Product name Solenoid coil
Quantity per packing format 24 pc
Rel. Humidity [% RH] [Max] 97 %
Rel. Humidity [% RH] [Min] 0 %
Rel. Humidity conditions Non-condensation
Serviceable No
Spare part number 042N7602
Supply voltage 50Hz Max [V] 240 V
Supply voltage 60Hz Max [V] 240 V
Supply voltage [V] a.c. 240 V
Supply voltage [V] AC 240 V
Type AS240CS
Type designation AS240CS
Actuator size 9 mm
Ambient temperature range [°C] [Max] 50 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 122 °F
Ambient temperature range [°F] [Min] -40 °F
Approval LLC CDC TYSK
Coil connection DIN Spade
Coil fastening Clip-on
Colour Blue
Compliance EN 60730-1
Electrical connection DIN Spade
Electrical connection size 6.3 mm x 0.8 mm
Electrical connection standard EN175301-803
Electrical connector 3 x spades
Enclosure rating IP IP00
Frequency [Hz] 50/60 Hz
Packing format Multi pack
Parts Program name EV220W
Power consumption 50Hz [VA] 13 VA
Power consumption 60Hz [VA] 10 VA
Power consumption [W] 50Hz 6.5 W
Power consumption [W] 60Hz 5 W
Product accessories Solenoid coil accessories
Product group Solenoid valves
Product name Solenoid coil
Quantity per packing format 24 pc
Rel. Humidity [% RH] [Max] 97 %
Rel. Humidity [% RH] [Min] 0 %
Rel. Humidity conditions Non-condensation
Serviceable No
Spare part number 042N7602
Supply voltage 50Hz Max [V] 240 V
Supply voltage 60Hz Max [V] 240 V
Supply voltage [V] a.c. 240 V
Supply voltage [V] AC 240 V
Type AS240CS
Type designation AS240CS
