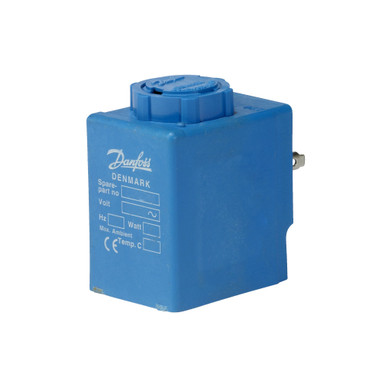

042N7518 Danfoss Solenoid coil, BC230C

042N7518 Danfoss Solenoid coil, BC230C

Original price was: $36.34.Current price is: $10.90.

SKU: 042N7518 Category: Tag:

Description

Product details

Gross weight 0.18 kg
Net weight 0.16 kg
EAN 5702422030782
Gross weight 0.18 kg
Net weight 0.16 kg
EAN 5702422030782



Actuator size 13.5 mm
Ambient temperature range [°C] [Max] 40 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 104 °F
Ambient temperature range [°F] [Min] -40 °F
Coil connection DIN Spade
Colour Blue
Electrical connection DIN Spade
Electrical connection size 6.3 mm x 0.8 mm
Electrical connection standard EN175301-803
Electrical connector 3 x spades
Enclosure rating IP IP00
Frequency [Hz] 50/60 Hz
Packing format Multi pack
Power consumption 50Hz [VA] 25 VA
Power consumption 60Hz [VA] 19 VA
Power consumption [W] 50Hz 12 W
Power consumption [W] 60Hz 9.5 W
Product accessories Solenoid coil accessories
Product group Solenoid valves
Product name Solenoid coil
Quantity per packing format 45 pc
Rel. Humidity [% RH] [Max] 97 %
Rel. Humidity [% RH] [Min] 0 %
Rel. Humidity conditions Non-condensation
Serviceable No
Supply voltage 50Hz Max [V] 230 V
Supply voltage 50Hz Min [V] 220 V
Supply voltage 60Hz Max [V] 230 V
Supply voltage 60Hz Min [V] 220 V
Supply voltage [V] AC [Max] 230 V
Supply voltage [V] AC [Min] 220 V
Type BC230C
Type designation BC230C
Actuator size 13.5 mm
Ambient temperature range [°C] [Max] 40 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 104 °F
Ambient temperature range [°F] [Min] -40 °F
Coil connection DIN Spade
Colour Blue
Electrical connection DIN Spade
Electrical connection size 6.3 mm x 0.8 mm
Electrical connection standard EN175301-803
Electrical connector 3 x spades
Enclosure rating IP IP00
Frequency [Hz] 50/60 Hz
Packing format Multi pack
Power consumption 50Hz [VA] 25 VA
Power consumption 60Hz [VA] 19 VA
Power consumption [W] 50Hz 12 W
Power consumption [W] 60Hz 9.5 W
Product accessories Solenoid coil accessories
Product group Solenoid valves
Product name Solenoid coil
Quantity per packing format 45 pc
Rel. Humidity [% RH] [Max] 97 %
Rel. Humidity [% RH] [Min] 0 %
Rel. Humidity conditions Non-condensation
Serviceable No
Supply voltage 50Hz Max [V] 230 V
Supply voltage 50Hz Min [V] 220 V
Supply voltage 60Hz Max [V] 230 V
Supply voltage 60Hz Min [V] 220 V
Supply voltage [V] AC [Max] 230 V
Supply voltage [V] AC [Min] 220 V
Type BC230C
Type designation BC230C

Product name: Solenoid coil, Type: BC230C, Supply voltage [V] AC: 220 – 230, Enclosure rating IP: IP00, Coil connection: DIN Spade, Actuator size: 13.5 mm
