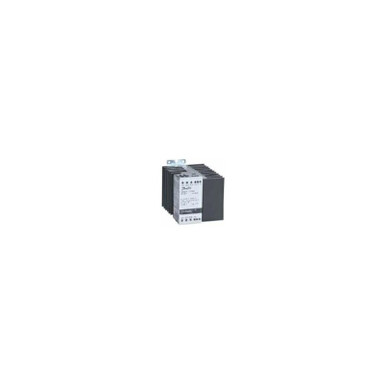

Type Code ECI 30-1 , Weight 0.685 Kg , Approval CE, EAC, UL More details
ECI electronic contactors are designed for applications demanding fast and precise switching. The contactors utilize SCR power chips with new LTE (Low Thermal Expansion) technology. This unique power chip design ensures high switching capacity and long life. The contactors are burst fired for reduced EMC emission, are DIN-rail mountable complete with heat sink and require no additional components. SCR power chip with LTE technology Compact modular design complete with heat sink DIN-rail mountable Built-in varistor protection Operational current up to 63A (AC-1) Line voltage up to 600 V ac Universal control voltage Burst firing (zero cross) LED status indicator IP 20 protection Problem-free specification according to industry standard Easy and quick installation Available as ECI-1 single-phase, ECI-2 dual-phase and ECI-3 three-phase contactors
| Type Code | ECI 30-1 |
| Weight | 0.685 Kg |
| Approval | CE, EAC, UL |
| Control volt. DC | 24 – 230 V |
| Control volt., 50/60 Hz | 24 – 230 V |
| Controlled phases | 1 |
| EAN no. | 5702423108060 |
| Max. load [A] | 30 A |
| Descript. | ELECTRONIC CONTACTOR |
| Prod. Group | Contactors and motor starters |
| Prod. name | ELECTRONIC CONTACTOR |
| Supply volt. AC | 230 V |
| UL approval file | E198251 |
