Description

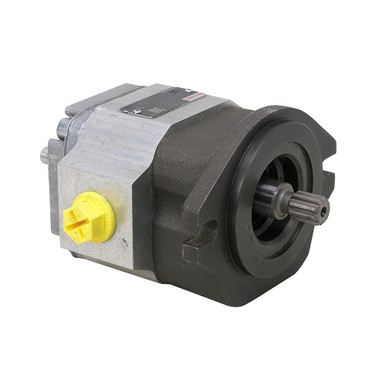

0.67 cu in REXROTH PGF2-22/011RJ01VU2 HYDRAULIC GEAR PUMP
New, Rexroth PGF2-22/011RJ01VU2 fixed displacement hydraulic gear pump. Aluminum body with cast iron mounting flange.
SPECIFICATIONS
- Manufacturer Rexroth
- Model PGF2-22/011RJ01VU2
- Disp. 0.67 cu. in. / rev.
- Pump Type Gear
- Rotation CW
- Pressure:
2610 PSI Cont.
3045 PSI Int. - Speed:
600 RPM min.
3000 RPM max. - Flow:
1.49 GPM @ 600 RPM
7.4 GPM @ 3000 RPM - Mount 2 Bolt SAE A
- Shaft 5/8″ 9T spline, 1″ long
- Inlet Port 3/4″ BSPP
- Outlet Port 1/2″ BSPP
- Size 6.25″ x 5.125″ x 3.6875″
- Shpg. 11 lbs.
