0.66 cu in Hydraulic Pump Dynamic GPF10108PC

Description

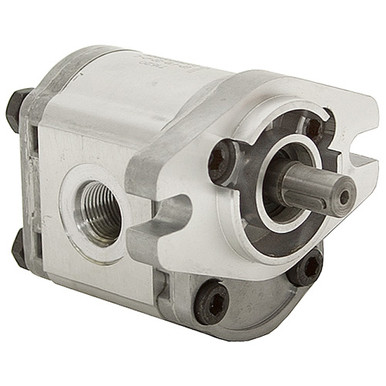

0.66 cu in DYNAMIC GPF10108PC HYDRAULIC PUMP
Brand new, DYNAMIC GP-F10 series hydraulic gear pump. Aluminum center section with cast iron end covers.

SPECIFICATIONS

• Brand Dynamic
• Model Number 71690
• Build Number GP-F10-108-P-C
• Disp. 0.66 cu. in. / rev.
• Pump Type Gear
• Rotation CW
• Pressure:
    2610 PSI rated
    3190 PSI peak
• Speed:
    2000 RPM rated
    3000 RPM max.
• Flow:
    5.31 GPM rated
    7.97 GPM max.
• Mount 2 bolt SAE AA
• Shaft 1/2″ dia. x 1-1/16″ long with 1/8″ wide keyway
• Rqd. Filtration 25 micron
• Inlet Port SAE 8
• Outlet Port SAE 6
• Size 5″ x 4.03125″ x 3.3125″
• Shpg. 9 lbs.
