Description

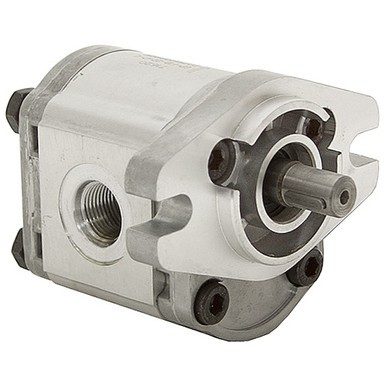

0.55 cu in DYNAMIC GPF1091PA HYDRAULIC PUMP
Brand new, DYNAMIC GP-F10 series hydraulic gear pump. Aluminum center section with cast iron end covers.
SPECIFICATIONS
- Brand Dynamic
- Model Number 71580
- Build Number GP-F10-91-P-A
- Disp. 0.55 cu. in. / rev.
- Pump Type Gear
- Rotation CCW
- Pressure:
2610 PSI rated
3190 PSI peak - Speed:
2000 RPM rated
3000 RPM max. - Flow:
4.43 GPM rated
6.64 GPM max. - Mount 2 bolt SAE AA
- Shaft 1/2″ dia. x 1-1/16″ long with 1/8″ wide keyway
- Rqd. Filtration 25 micron
- Inlet Port SAE 8
- Outlet Port SAE 6
- Size 4.8125″ x 4.03125″ x 3.3125″
- Shpg. 8 lbs.
