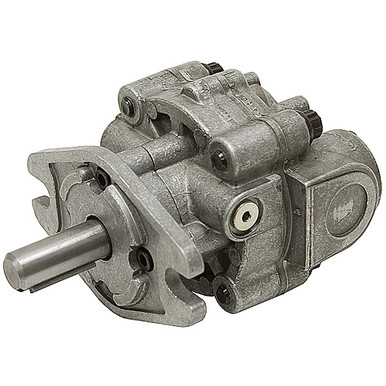

0.218 cu in Hydraulic MotorParker MGG20010-BA1A3

Description

HYDRAULIC MOTOR
Brand new, Parker model MGG20010BA1A3. Hydraulic motor for agricultural, commercial applications. Geroter design with heavy duty bearings, aluminum case, reversible, Buna-N seals.
(Click here to see the same motor with side ports)

SPECIFICATIONS

• Brand Parker
• Displacement 0.218 cu.in./rev.
• Pressure
    2000 PSI cont.
    2500 PSI int.
• Speed
    5000 RPM max.
• Torque 35 in.lbs/1000 PSI
• Flow 0.95 GPM @ 1000 RPM
• Reversible Rotation
• Mount SAE AA 2 bolt w/ 2″ dia. pilot
• Shaft 0.5625″ dia. x 1.375″ w/keyway
• Ports SAE 8
• Rear Ports
• Size 5.5″ x 3.5″ x 3.375″
• Shpg. 5 lbs.
